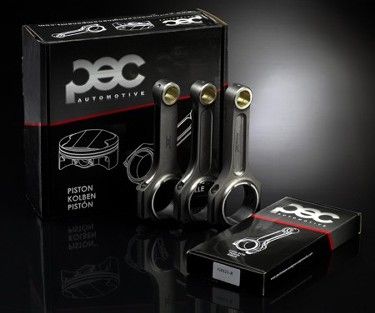

PEC Connecting Rods for Renault Megane RS Mk2 225 R26, Mk3 250, 265, 275 F4R F7R - G0015

Renault 2.0 16v F4R / F7R & 1.8 16v F7P PEC Steel Connecting Rods.

PEC's own in house design facilities are able to create many different components but for nearly 10 years now, it's their connecting rods that have helped set them apart from the competition in terms of availability, ease of fitment and size of range.

Manufactured from forgings originally produced in Sweden, PEC connecting rods have offered engine builders and tuners a cost efficient and yet high performing solution to a wide variety engine building problems.

H-Beam and I-Beam section connecting rods are forged from AISI 4340 (En24) steel. Heat treated to HRC 35-38 and then shot peened for a higher fatigue strength. Small ends are bushed for a fully floating pin and big ends are fitted with high quality ARP fasteners with different specification bolts available depending on the level of performance required.

PEC Connecting rods have been designed, manufactured and tested to the highest levels of scrutiny before being released to the trade and the public alike and their success record speaks for itself.

Specifications:
Engine Type - Clio / Megane 2.0 16v F4R & 1.8 16v F7R.
Length Centre to Centre - 144.00mm.
Small End Diameter - 21.00mm.
Small End Width - 25.00mm.
Big End Diameter - 51.59mm.
Big End Width - 25.00mm.
